- 特點:採用特殊強力皮帶,振動小,無噪音,清潔美觀,長久耐用。
- 用途:電腦、家電、餅乾、窯業、纖維等,箱裝物、袋裝物及塊狀物之輸送,均可適用。
- 主要機種:
1.皮帶寬度(BL)從400mm至1000mm,每間隔為10mmm
2.滾輸直徑(直徑)分100mm、150mm及250mm三種
3.轉彎夕度有90o及180o二種。
4.外端半徑(R)每間隔為200mm。
- Feature:it fits with strong and durable conveyor belt,without vibration and noise when traveling.
- Usage:They are mainly used to convey unit or packed material such as computer, household applince or material packed in carton or bale etc.

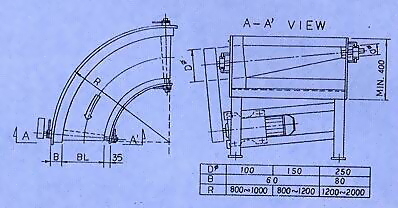

- Main Type:
1.Belt width:400mm~1,000mm,with 100mm increment.
2.Pulley diameter:100mm,150mm and 250mm.
3.Curve degree:90o and 180o
4.Radius of outer frame:800~1,000mm,800~1,200mm,1,200mm~2,000mm,with 200mm increment.
